Introduction to fog screen projection

　　Air screen projection imaging is a new kind of air imaging equipment.The device uses the imaging principle of a mirage to present light and shadow images with the help of particles present in the air. Use a thin layer of water wall instead of the traditional projection screen, so that you can travel freely through the screen image to achieve the virtual effect that the real person can enter the visual surface.Using chemical equipment to generate a large number of artificial devices, combined with the principle of air flow, the resulting screen can be generated to form a plane gas screen, and then the projection device can be projected onto the screen, and then a virtual image can be formed in space.Form a kind of three-person space image, give people a new kind of visual enjoyment, and its image gives people the feeling of being planned among people, and it is also true and illusory, like being in a fairyland and living in a pool.

　　Fog screen projection has a strong visual impact, clear special effects, a variety of contents, can effectively improve customer interaction, and screen projection will not cause any damage to people, and the projection medium is no longer immutable.

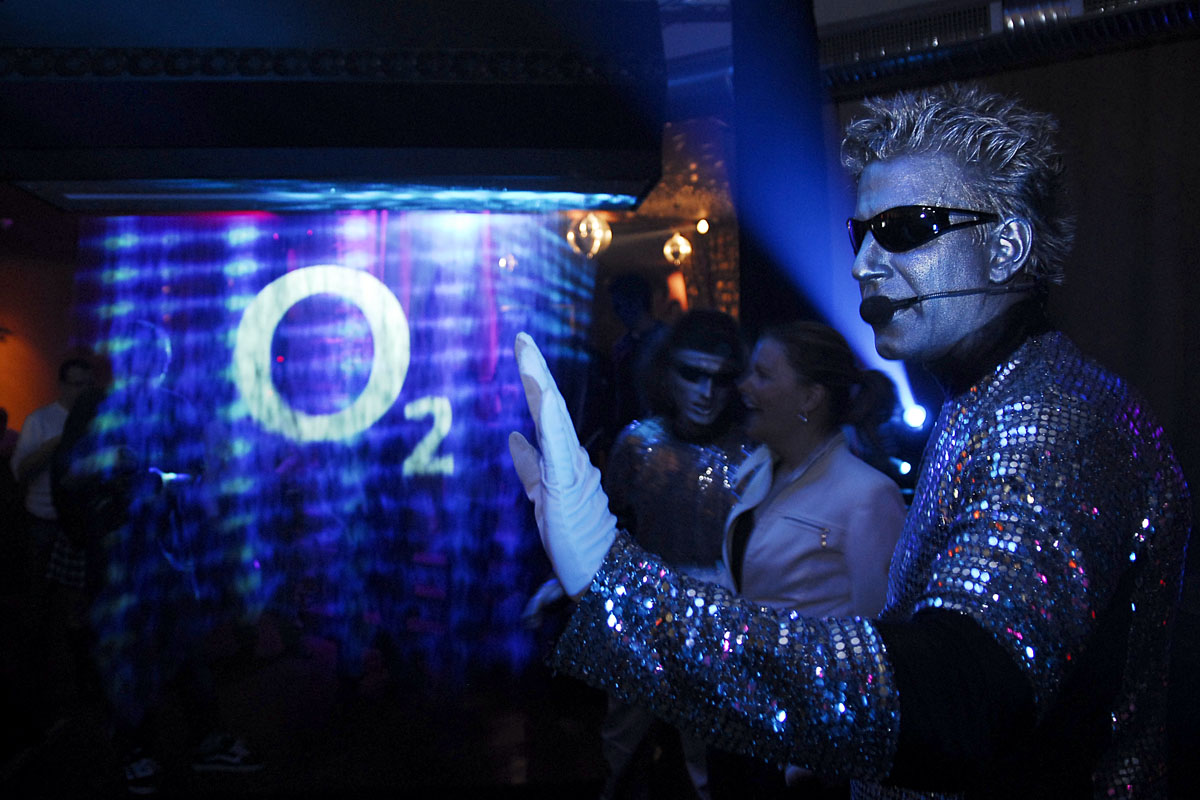

An unprecedented audiovisual experience

Principle of fog screen projection

　　The fog screen system is an electronic overfrequency oscillation system. Through the high frequency resonance of the transducer, the water is thrown off the water surface to produce a natural drifting water mist. It does not need heating or chemical agent to produce 1-10 microns water particles floating in the air. It also uses the principle of aerodynamics to produce a screen that can present a plane fog.

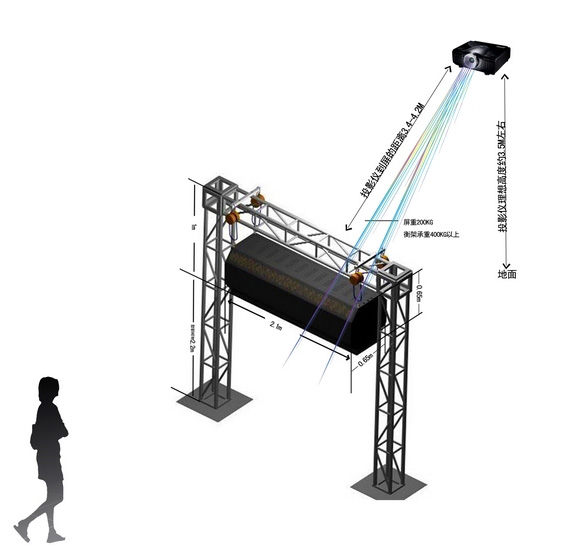

Principle and installation of fog screen projection

Characteristics of fog screen projection products

　　1. The inner part of the product adopts integrated ultrasonic core, which is no mechanical drive, quiet, no noise, high atomization efficiency, producing a certain concentration of negative ions, with low failure rate and simple maintenance.

　　2. The box body is made of all stainless steel and sprayed with plastic. It is practical and beautiful in appearance. It is equipped with standard water supply nozzle, water discharge switch and overflow nozzle, and automatic water level control.

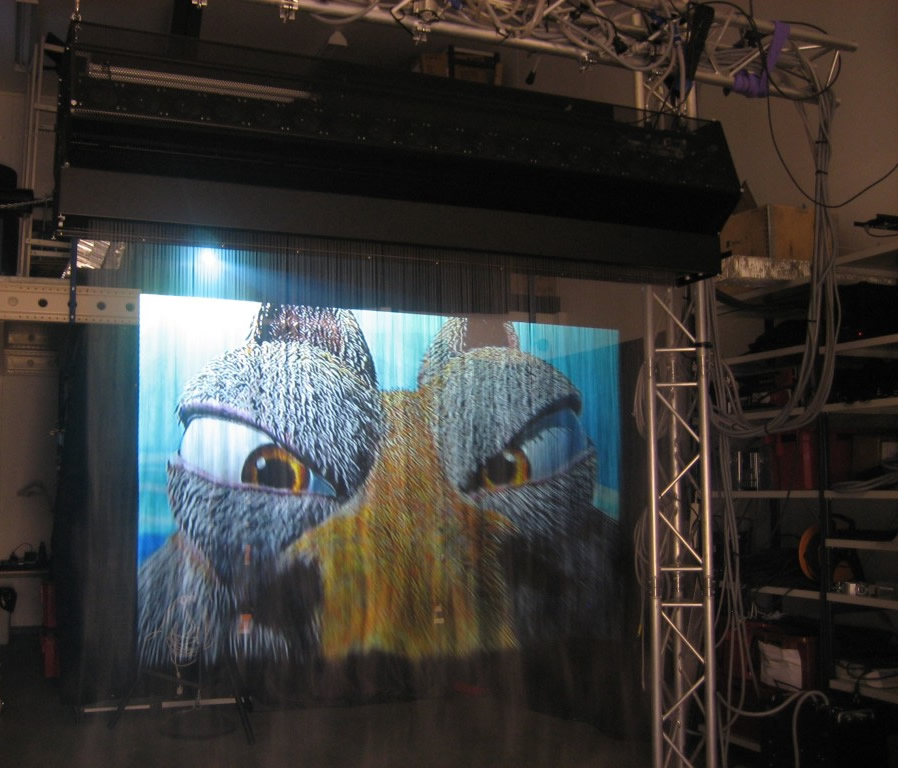

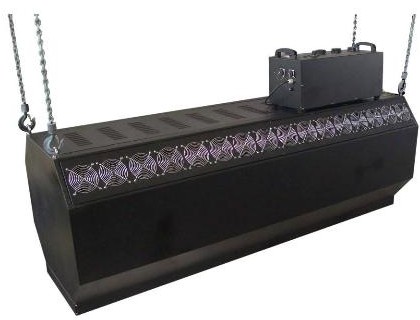

Fog screen generator

　　3. Raw materials of fog: Ordinary tap water, environmental protection and energy saving.

　　4. Every fog screen unit can be used independently or in combination to form various shapes, such as planes, arcs, etc.

　　5. The fog screen generator can project the calculator, program, infrared ray, laser and radar through the projector to the fog screen through the wind field in light speed, forming a variety of dynamic and virtual images.

　　6. The fog screen is non-toxic, odorless, environmental protection, and it can produce negative ions. It can also purify the air, and tourists can interact with the fog screen heartily.

Application areas

　　Based on the unique characteristics of fog screen illusory imaging, it has broad market prospects. It can be fully used as a display platform in stage, exhibition and advertisement. It is also widely used in tourist attraction, science and technology museum, museum, exhibition hall, airport, station, shopping mall, entrance of large shopping mall, disco, KTV entertainment venue, enterprise exhibition hall, new product presentation, entertainment venue, theme education hall, children's science park, etc. as a new display media.

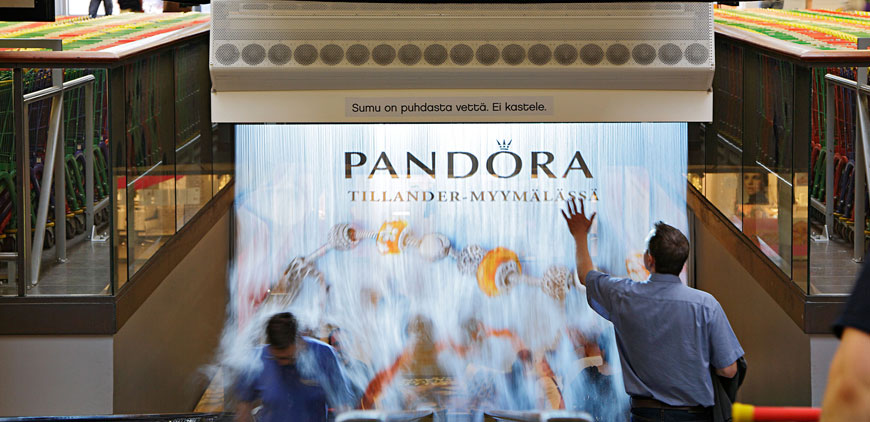

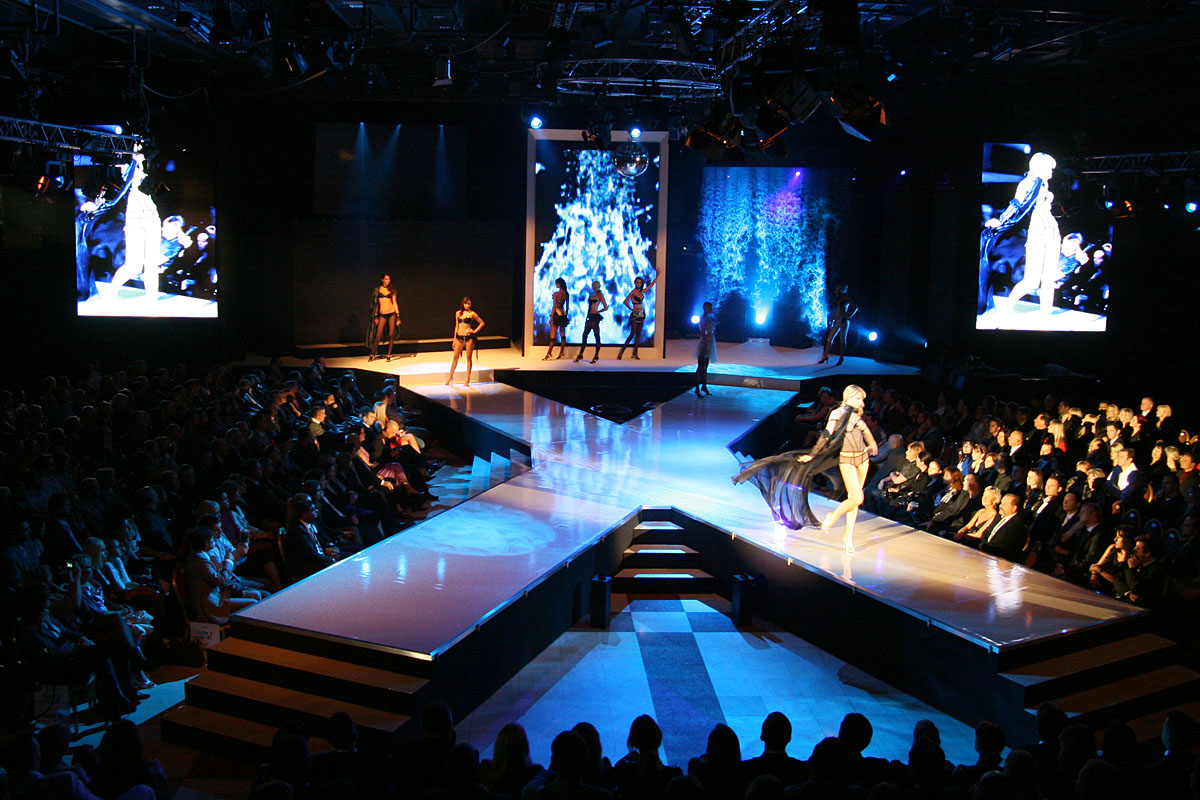

Application areas of fog screen projection

Application areas of fog screen projection

Application areas of fog screen projection
